Dimensions and Weight

Before packing:?98*150*150cm

After packing: 104*155*155cm

Weight after packing: about 100KG

?

Brand: TILO

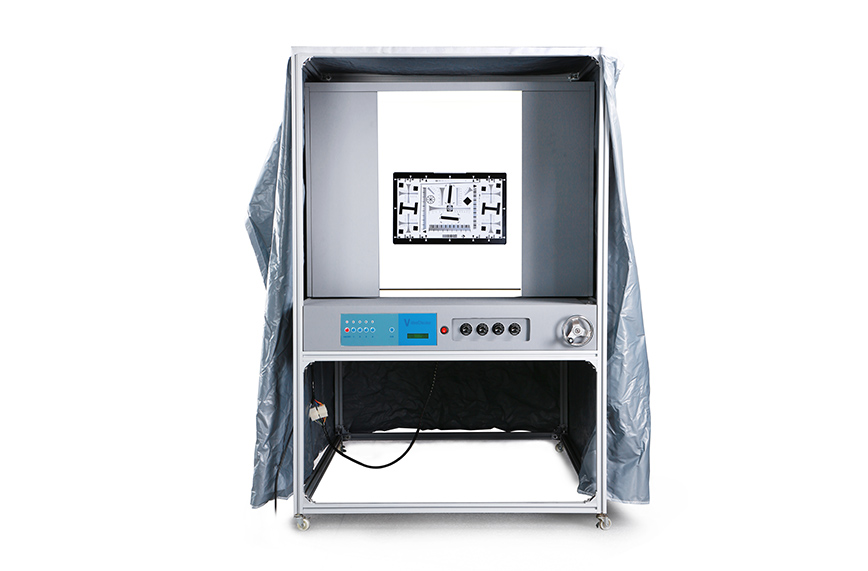

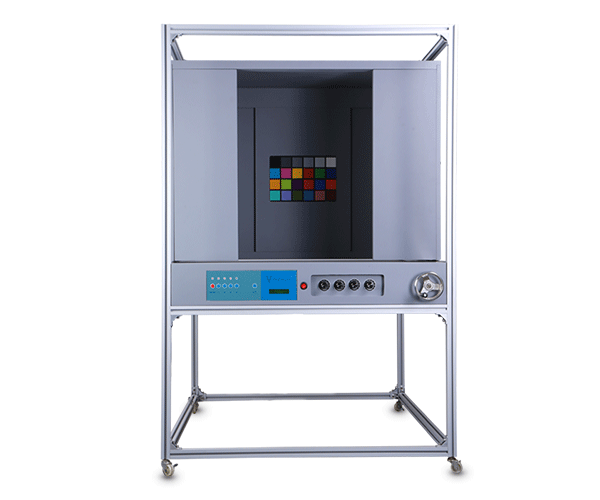

VideoChecker provides a special lighting source for the test of your Video Camera. Its main functions are as below:

- High-level lighting homogeneity.

- Testing distance adjustable.

- Selectable color-temperature as required.

- Continuable Light Intensity Adjustment.

- Configure three light sources: D65, TL84, A

?

Light Sources :

?

D65? color temperature 6500k? ?illumination: 10lux- 2800lus adjusted

TL84 ?color temperature 4000k? illumination: 10lux- 3000lus adjusted

F/A? ??color temperature 2856k? ?illumination: 0.1lux- 800lus adjusted

Optional Light Source : 10000K,D75,D50,CWF,U35,TL83

Fetures :

1. 4 groups of light combination switches & time-meter for light aging control

2. Color temperature range : 2700k-7500k

3. Adjustable light intensity : (1%-100%)

4. Lighting Homegeneity : >80%

5. Adjustable focal length :10cm-175cm
