LAB Equipment
| Model | VC(3) |
| Type | Reflective |
| Illumination | 750 to 3200 lux |
| Light Source | D65, A, TL84, CWF |

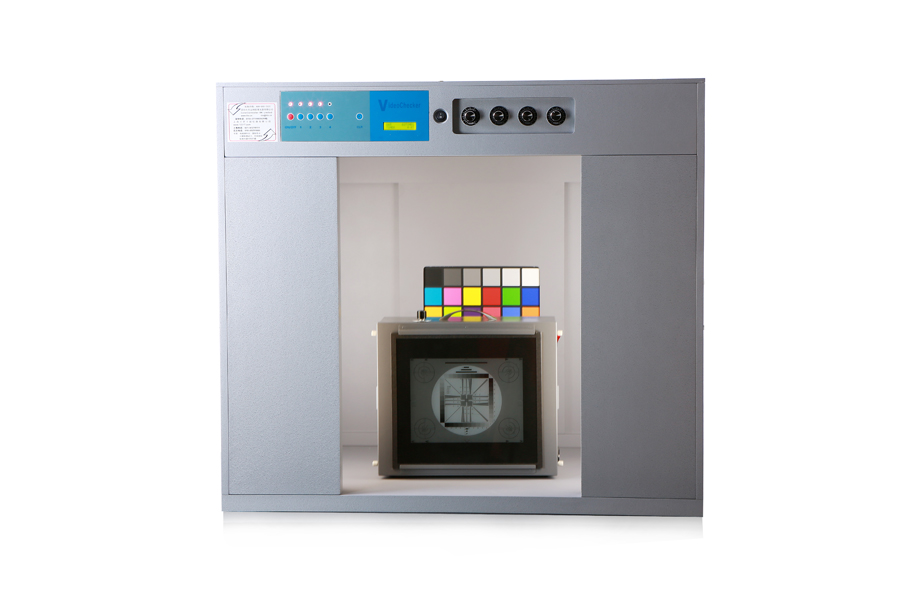

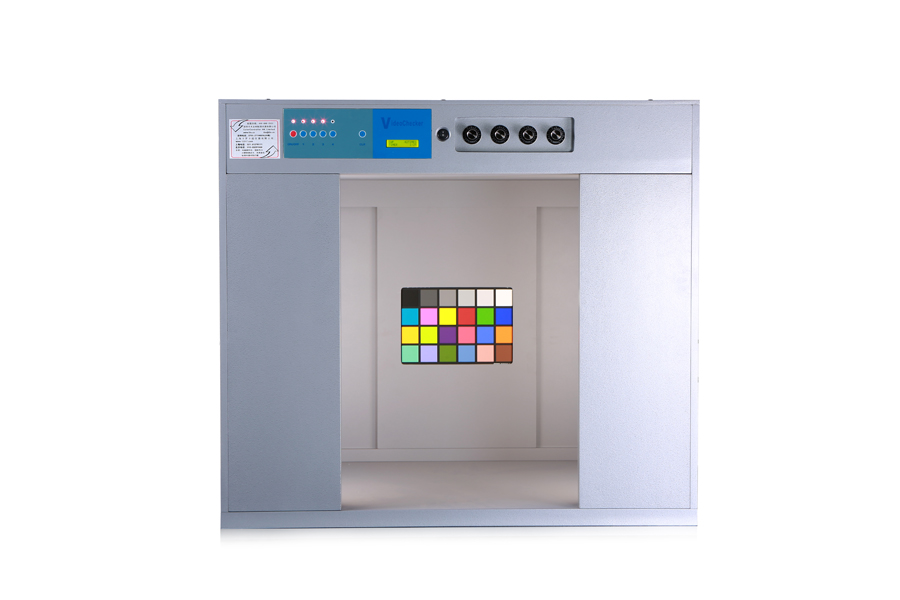

Camera Color Check Box provides a special lighting source for the test of your Video Camera. Its main functions are as below:
Camera Color Check Box Specifications:
1. Including D65, A, TL84, CWF light sources
2. Quick Switch among each group of light sources by using microcomputer control
3. Timing function to record the using time of each group of light sources separately.
4. All parts are professional import, international quality certification.
Camera Color Check Box Performance:
1. Daylight accredited by CIE, 6500k color temperature
2. Illumination range: 750 to 3200 lux
3. Background of the light sources is Neutral Grey.
4. Illumination adjustable from 1% to 100%, higher than 80% evenness, test distance can be adjustable.
Light Source:
| Light Source | Application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| A | Shooting Light of American Window, Colorimetric reference light source | 2856 | 75 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
?
