Subjective real scene test chart is based on personal subjective feelings, building a test scene, taking photos with a camera, and then subjectively judging the performance of the camera in all aspects through the photos.

The YE0670 real scene test chart elements include charcoal, feathers, sponge, fabric, yarn, hemp rope, etc., which can be used to analyze the performance of the lens in reproducing the texture of different materials. 24 color cards with rich colors, fruits, flowers, color ratios, and children's toys can be used to analyze the color performance of the lens. Resolution cards, newspapers, QR codes, labels on wine bottles, and more can be used to analyze the resolution capability of the lens.

Description of YE0670 Real Scene Test Chart

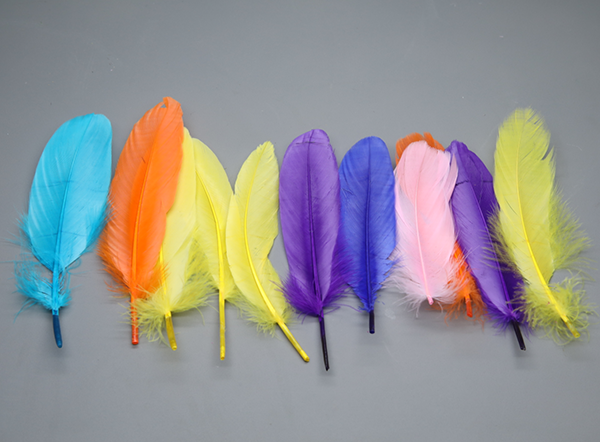

	Feather testing can better reflect the performance of the lens in terms of gloss, chromaticity, transparency, and texture details

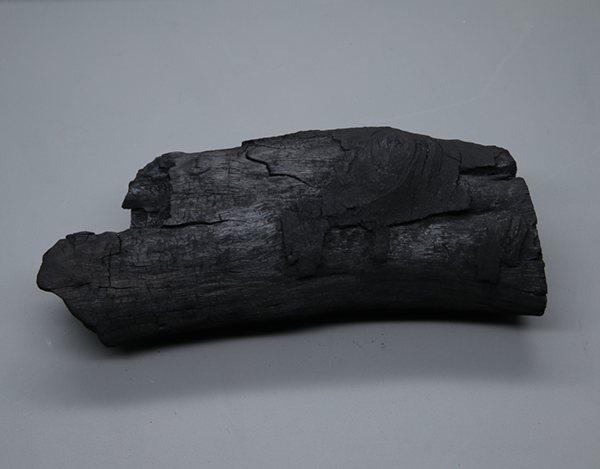

Charcoal is used to analyze the loss of low to medium contrast and details caused by noise reduction or other image processing

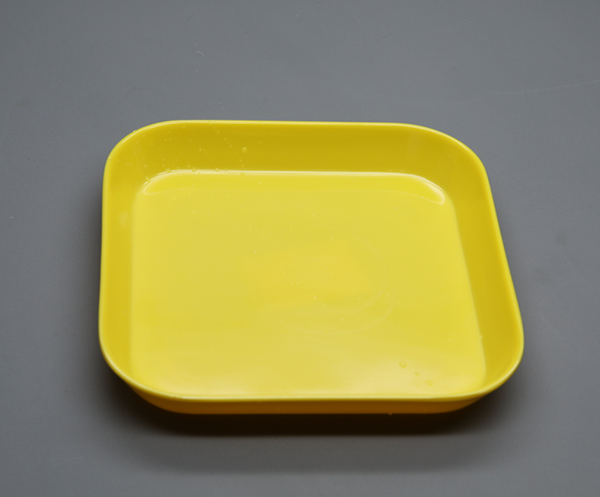

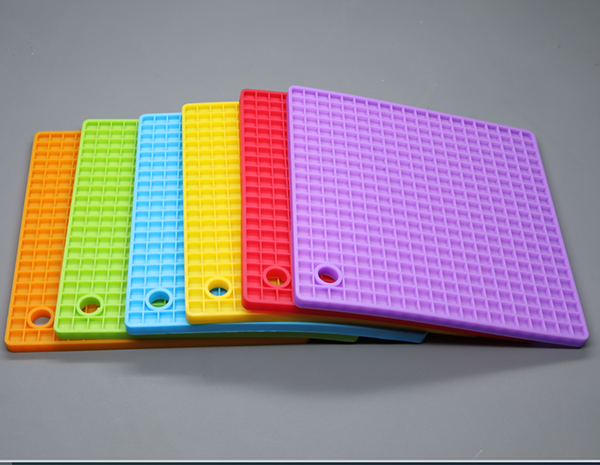

	Color palette, which can better observe the details and color reproduction of uneven plastic surfaces
Blue sky and sea city scenery, used to observe the details of urban floors, the balance between blue sky and white clouds, and the white balance of the sea

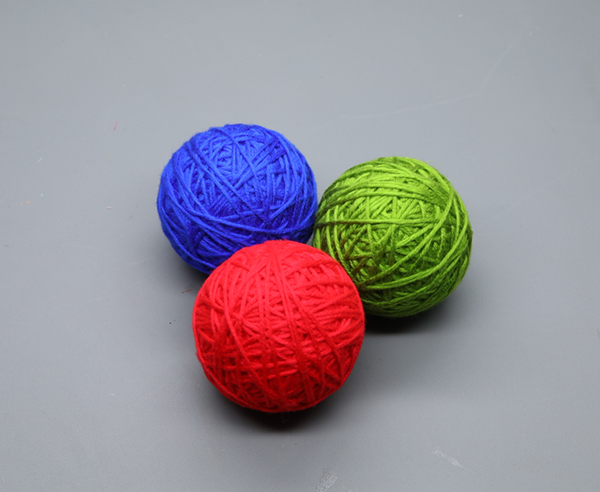

	The green, red, and blue yarn balls are used to observe the lens' ability to reproduce low contrast details in different colors

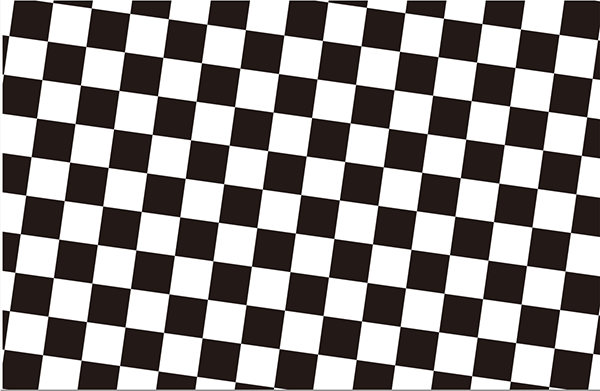

Tilt 8-degree checkerboard test card to detect the MTF value of the lens

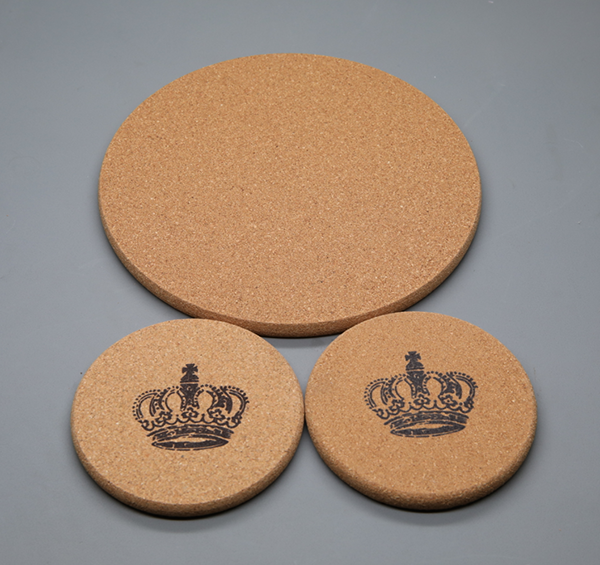

	Brown round wooden board, used to observe the color expression and detail reproduction of the wooden board by the camera

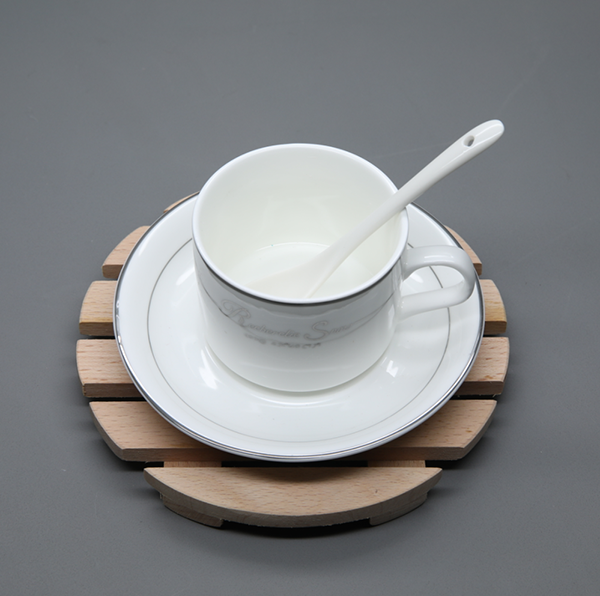

Ceramic cup, used to test the performance of lenses on ceramic texture

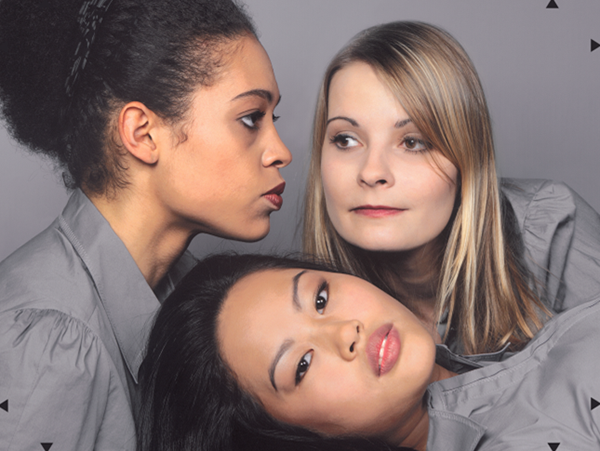

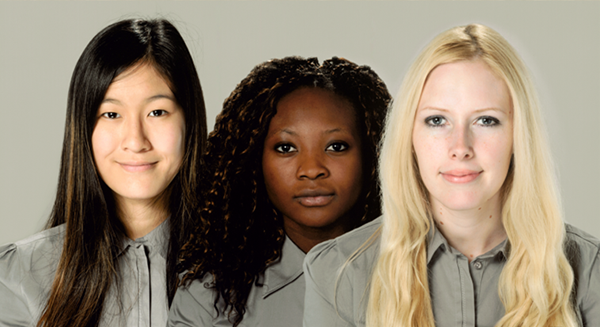

	Skin tone test card, used to test the restoration of three different skin tones and the detailed expression of portraits

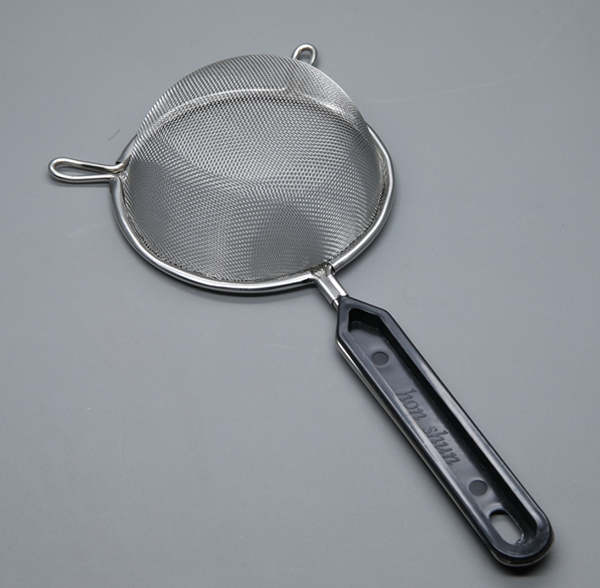

	Stainless steel filter spoon, used to test the performance of metals and plastics

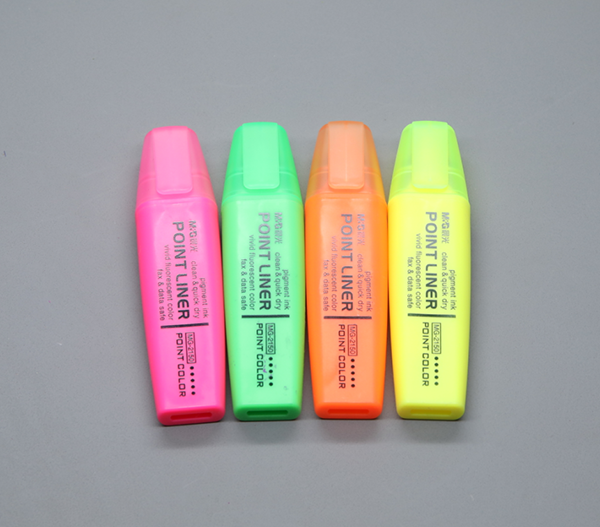

Four different colored dyes are used to test the color reproduction and detail reproduction of plastic shells by the lens

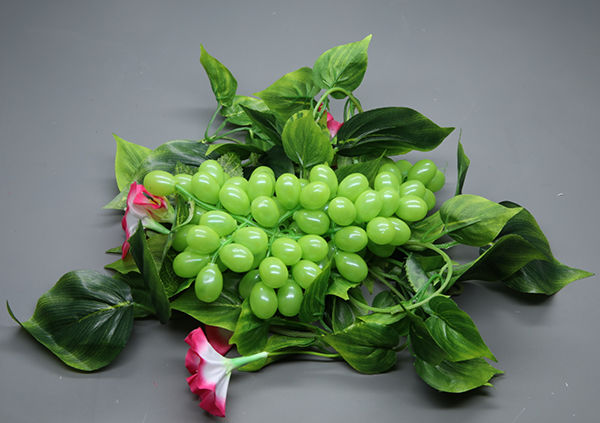

	Green plants, observing the camera's detailed representation of the flowers and fruits of green plants

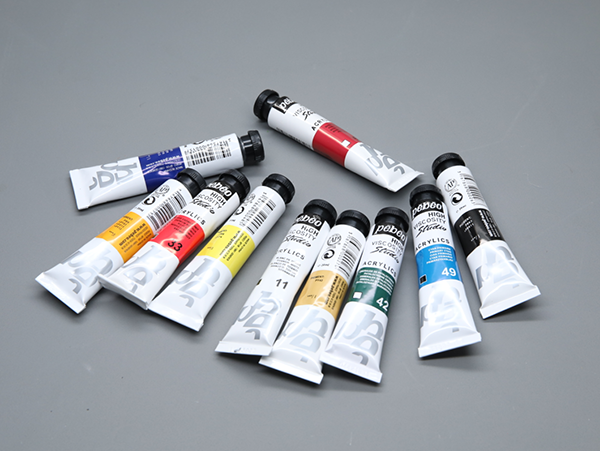

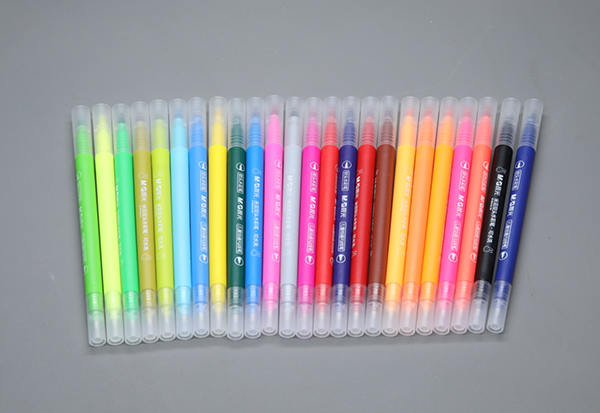

A set of multi-color dyes can better observe the color reproduction and text details of the dye shell

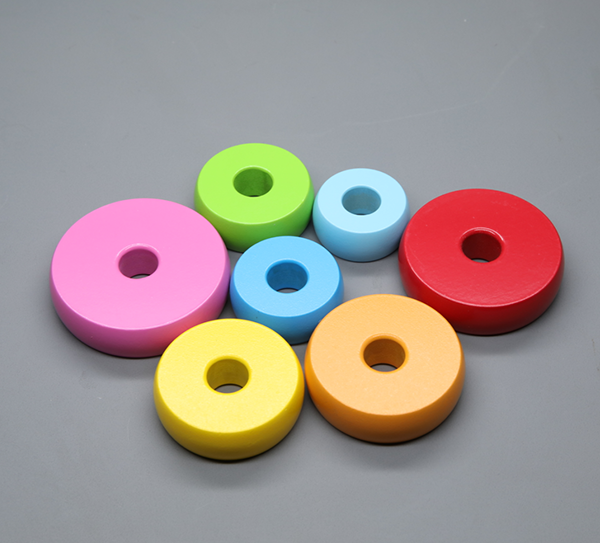

	Colorful building blocks, used for subjective color reproduction

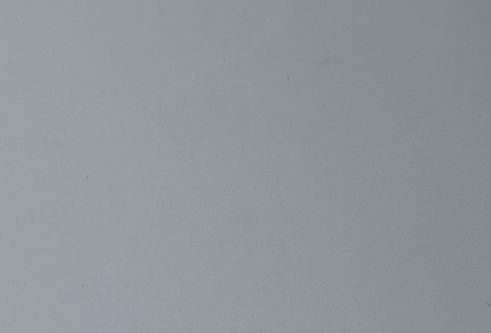

18% gray card, testing the color and brightness uniformity of the lens

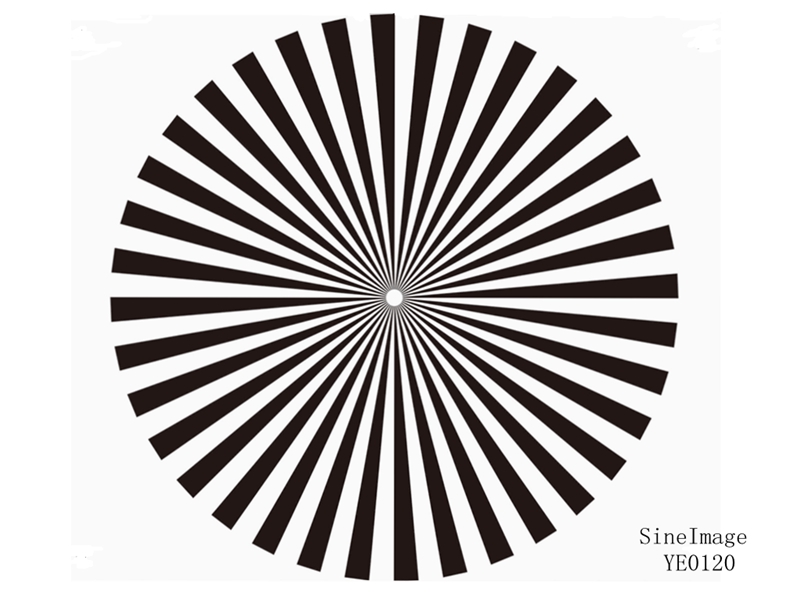

	Used for framing and focusing of lenses

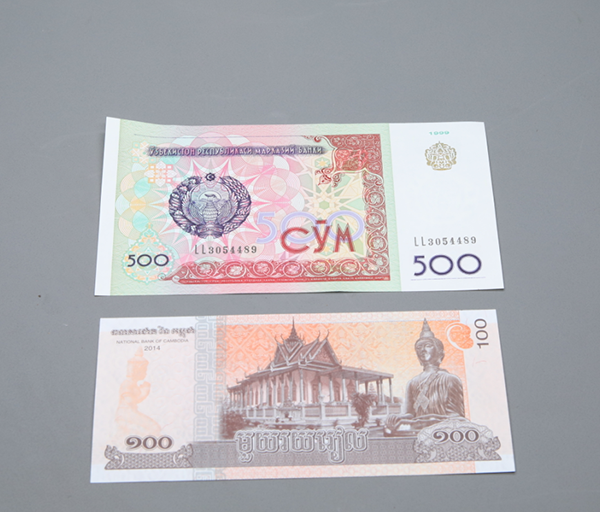

Paper currency, used to assess the clarity and color of surface text
	A set of colored pencils containing multiple colors. Used to test color performance under light sources
Plastic cover QR code, observe the color reproduction and texture details of solid color plastic and QR code

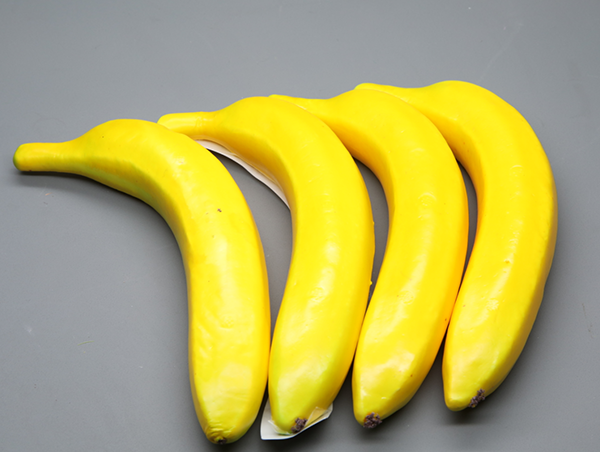

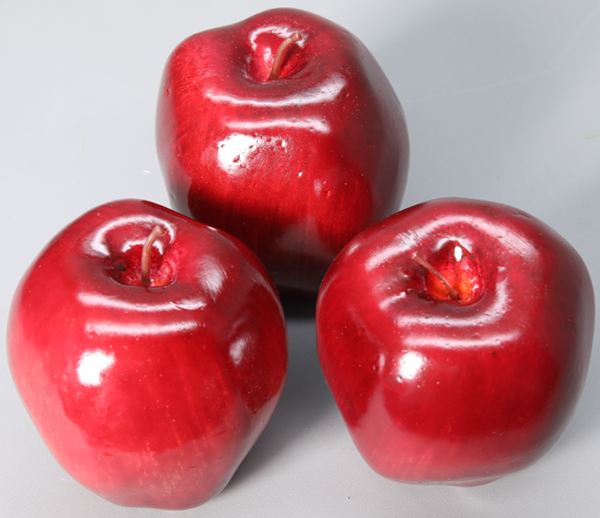

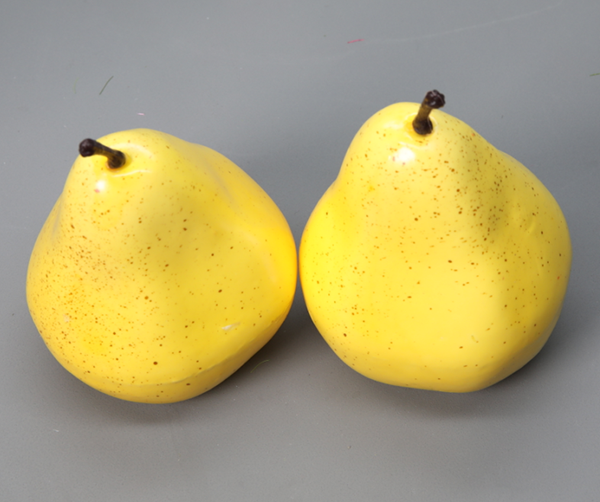

	Fruits, used to observe the performance of various fruits

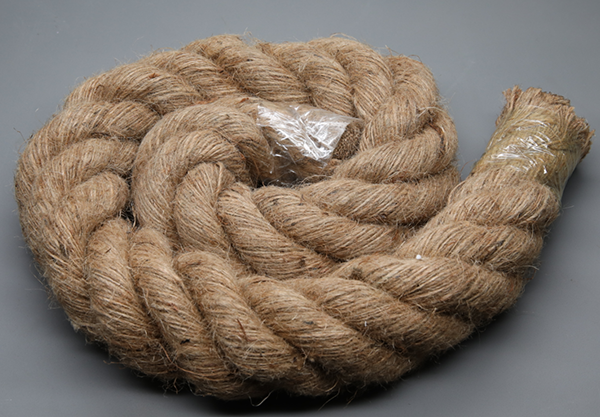

Hemp rope, used to test the detailed performance of hemp rope

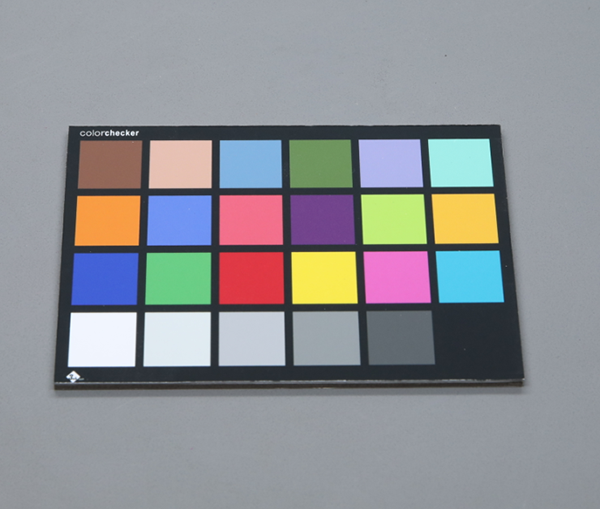

	24 color cards, containing 24 common colors from nature. Used for testing the color reproduction and color of lenses

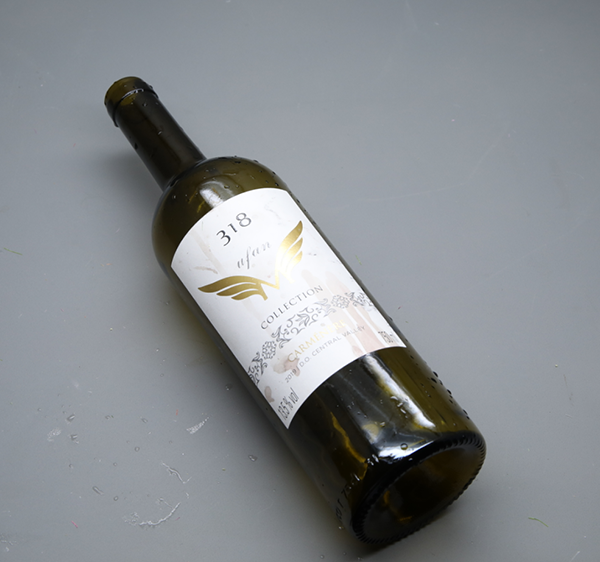

Wine bottle, there are many fine details on the bottle, requiring high resolution for the camera, used to observe the text details on the bottle

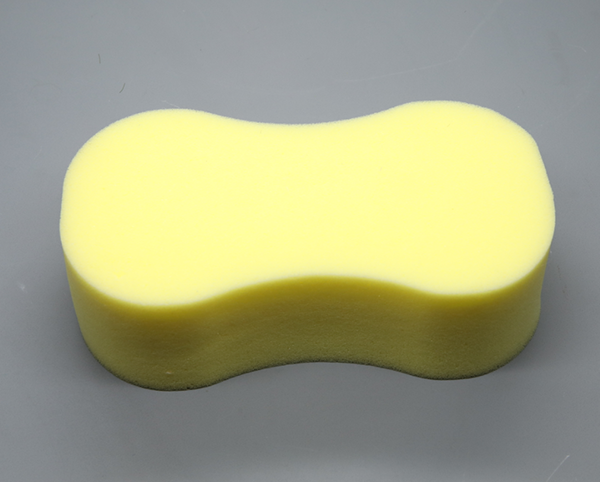

	Sponge, used to observe the behavior of objects

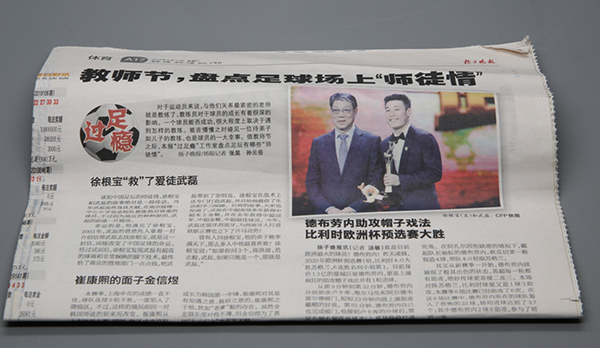

Newspaper, used to read the texture details and colors of surface text

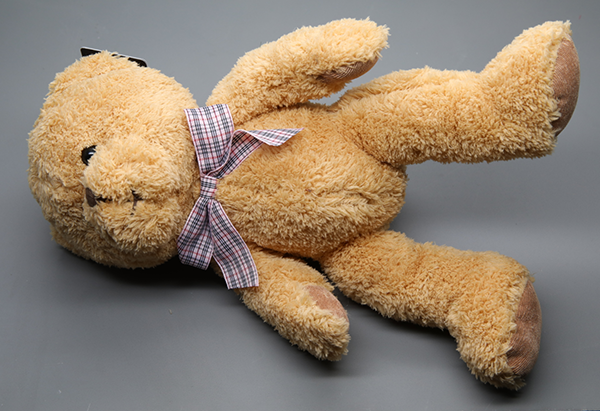

	Brown plush bears can observe the details of plush

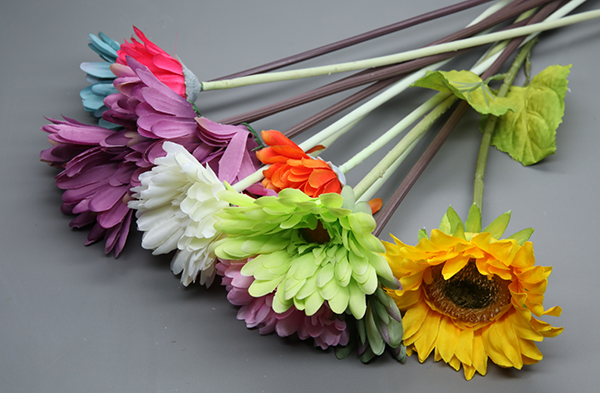

Flowers, used to observe the detailed expression of flowers

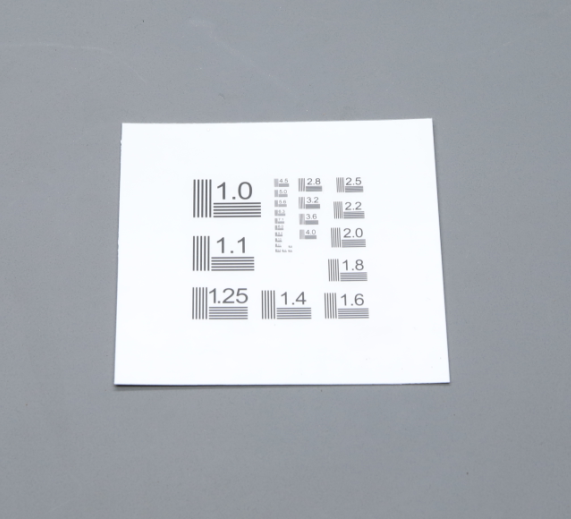

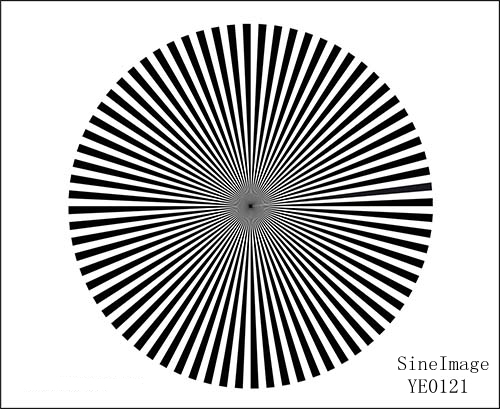

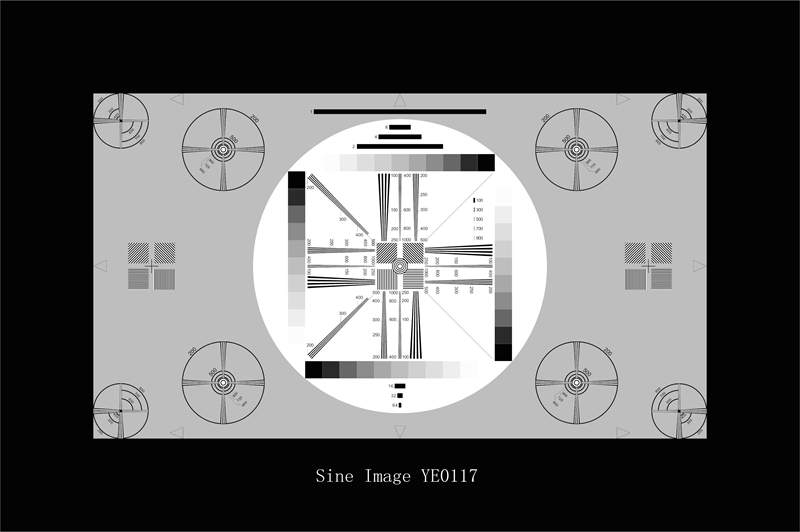

	Resolution test card, used to test the resolution of the lens

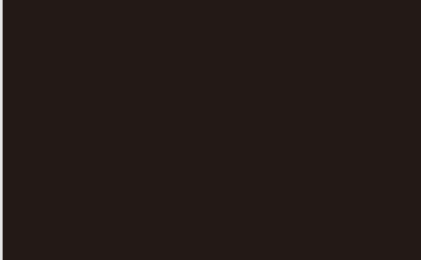

3% reflective black card, used to test the white balance of the lens
